Cnc Turning Process - an Overview

CNC Turning process is a simple method of shaping a metal or wood on a lathe. It is a machine tool that spins or turns a block of material to achieve rotational symmetry in a machine shop. Turning can be done manually or using a CNC machining. The computer numerically controls CNC machine. A typical CNC machining center is designed to remove material using a rotating cutter that moves laterally to a work piece mounted onto a table or fixture.

In the CNC turning process, a piece of material is rotated on the lathe and a cutting tool is traversed along two axis of motion, transverse or longitudinal. The process is done in a machine shop. The cutting tool is used until the required depth and dimension is achieved. Turning can be on both sides, inside or outside as per the needs and specifications. The rotation occurs at the turning center that enables control of tool motion through computer programs that use numeric data. Parts that are too large to balance and cause difficulty in rotating around one center point, can be worked on a machining center featuring a U axis. The turning length is about 1000mm between centers and has a drive power and speed range up to 46kW and 4,000 revolution/minute respectively.

CNC Turning Process
CNC turning process cuts the metal into various different shapes ranging from plain surface, taper ends, contour, and filter to radius profiles and threaded surfaces. These cut and turned metal pieces are used to create shafts, rods, hubs, bushes, pulleys and much more. Many industries also use it for fabricating parts and materials that have circular cross section. The process applies well to the most rigid materials that can be controlled exclusively with the software program tooling. The process does reduce the cost of production but on the other end, it limits the design flexibility.

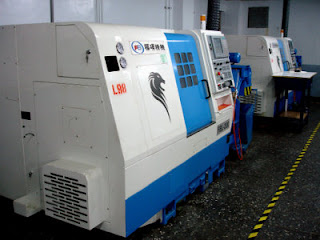

CNC Turning Machine
CNC turning machines are said to deliver components at a faster production rate with optimum manufacturing accuracy. The automation of the CNC turning process allows reaching tight dimensional tolerances in every piece. Other advantages are high level of parts consistency or uniformity, achievement of optimum cycle times for all components and faster execution of larger volume. As machines have brought a revolution in the industrial world, new technologies provided by emachineshop, boost the use of metal products.
